Brass (2)

Stainless Steel (5) - Polished and Satin Finish

Stainless Steel (5)

Steel (8) - Polished and Plated, or Bonderized and Prime Coated for Painting

Steel (8)

Electrified Hinge (EL)

Full Mortise (1)

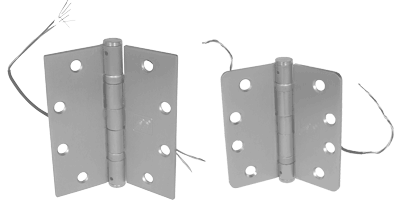

BB81EL / CB81EL

MATERIAL GAUGE: .130 ± .005 for 4” .134 ± .005 for 4-1/2” .146 ± .005 for 5”HEIGHT: 4.00 (+.000/-.015) for 4” 4.50 (+.000/-.015) for 4 1/2” 5.00 (+.000/-.015) for 5”WIDTH: 4.00 ± .015 for 4” x 4”, 4-1/2” x 4”, 5” x 4” 4.50 ± .015 for 4 1/2” x 4 1/2”, 5” x 4-1/2” 5.00 ± .015 for 5” x 5”4” STANDARD SCREW SIZE FHMS – 12-24 x 1/2” FHWS – 12 x 1-1/4”4.5” STANDARD SCREW SIZE FHMS – 12-24 x 1/2” FHWS – 12 x 1-1/4”5” STANDARD SCREW SIZE FHMS – 12-24 x 1/2” FHWS – 12 x 1-1/4”<figure class="table"><table><tbody><tr><td colspan="2">ELECTRICAL SPECIFICATIONS&nbsp;– (Maximum Continuous)</td></tr><tr><td>EL2 – 24 VAC/DC,</td><td>@ 3 amps, continuous, 8 amp surge</td></tr><tr><td>EL2+4 – 24 VAC/DC,</td><td>@ 3 amps, continuous, 8 amp surge 1 pr @ 1 amp, 1 pr @ .25 amps</td></tr><tr><td>EL4 – 24 VAC/DC,</td><td>1 pr @ 1 amp, 1 pr @ .25 amps</td></tr><tr><td>EL6 – 24 VAC/DC,</td><td>1 pr @ 1 amp, 2 pr @ .10 amps</td></tr><tr><td colspan="2">We do not recommend splicing hinges containing 26 AWG wire (EL4, EL6) to any wire heavier than 18 AWG</td></tr><tr><td>EL8 – 24 VAC/DC,</td><td>1 pr @ 1 amp, 3 pr @ .10 amps</td></tr><tr><td>EL10 – 24 VAC/DC,</td><td>1 pr @ 1 amp, 4 pr @ .10 amps</td></tr><tr><td colspan="2">We do not recommend splicing hinges containing 28 AWG wire (EL8, EL10) to any wire heavier than 20 AWG</td></tr></tbody></table></figure>NOTE: PURCHASE ORDERS PLACED FOR ELECTRIC MODIFICATION ARE NON CANCELLABLE**<figure class="table"><table><tbody><tr><td colspan="2">EL MODEL AVAILABLE</td></tr><tr><td>EL2 Wire</td><td>Concealed electric through-wire. 2 PTFE coated 20 gauge high Amp</td></tr><tr><td>EL2+4 Wire</td><td>Concealed electric through-wire. 2 PTFE coated 20 gauge. 4 PTFE coated 28 gauge.</td></tr><tr><td>EL4 Wire</td><td>Concealed electric through-wire. 4 PTFE coated 28 gauge</td></tr><tr><td>EL6 Wire</td><td>Concealed electric through-wire. 6 PTFE coated 28 gauge</td></tr><tr><td>EL8 Wire</td><td>Concealed electric through-wire. 8 PTFE coated 28 gauge</td></tr><tr><td>EL10 Wire</td><td>Concealed electric through-wire. 10 PTFE coated 28 gauge</td></tr></tbody></table></figure>ELECTRIC: Gauges available: .130, .134, .146Additional wire length may be purchased at additional cost. See pricebook for additional cost.All electric hinge modifications are to be placed in the center hinge position. Any other locations will void warranty. For grout filled frames install PBB mortar box-Failure to install mortar box voids warranty.PACKAGING INFORMATION One hinge and 1 screw pack per unit carton. 1 screw pack includes all machine screws (8), and 1/2 wood screws (4). ATMS &amp; AWS also available.

Weight	Standard Weight
Hinge Function	Electrified Hinge (EL)
Base Material	Brass (2) - Polished and Plated Stainless Steel (5) - Polished and Satin Finish Steel (8) - Polished and Plated, or Bonderized and Prime Coated for Painting
Hinge Type	Full Mortise (1)
Specifications	BB81EL view detail

BB81EL / CB81EL

Electrified Ball Bearing
