Steel (8) - Polished and Plated, or Bonderized and Prime Coated for Painting

Steel (8)

Double Acting Spring (DA)

Full Mortise (1)

DA81

MATERIAL GAUGE: Jamb Flange – .100 ± .005 for 6” Door Flange – .134 ± .005 for 4 1/2”BARREL DIAMETER: 1.180HEIGHT OF HINGE: Jamb Flange: 6.00 for 6” Door Flange: 4.50 for 4 1/2”WIDTH: Jamb Flange: 1.750 for 6” Door Flange: 1.650 for 4 1/2”STANDARD SCREW SIZE FHMS – 12-24 x 1/2” FHWS – 12 x 1 1/2”<figure class="table"><table><tbody><tr><td rowspan="2">SERIES</td><td colspan="2">2 Hinges</td><td colspan="2">3 Hinges</td><td rowspan="2">Door Thickness</td><td rowspan="2">Door Thickness</td></tr><tr><td>Door Weight Lbs.</td><td>Door Width</td><td>Door Weight Lbs.</td><td>Door Width</td></tr><tr><td>DA-81 6″ x 4.5 “</td><td>75</td><td>2′-8″</td><td>107</td><td>3′-0″</td><td>1 3/4″</td><td>7′-0″</td></tr></tbody></table></figure>PACKAGING INFORMATION: One hinge per plastic bag, 2 hinges and 1 screw pack per unit carton. 8 unit carton or 24 hinges per master shipping carton. 1 screw pack includes all machine screws (28), and 1/2 wood screws (14). ATMS &amp; AWS also available.

Weight	Standard Weight
Hinge Function	Double Acting Spring (DA)
Base Material	Steel (8) - Polished and Plated, or Bonderized and Prime Coated for Painting
Hinge Type	Full Mortise (1)
Specifications	DA81 view detail

DA81

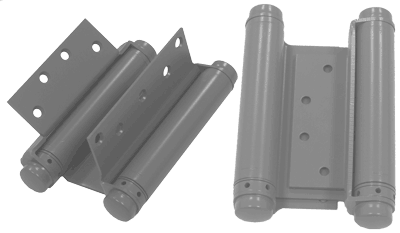

Double Acting Spring Hinge
